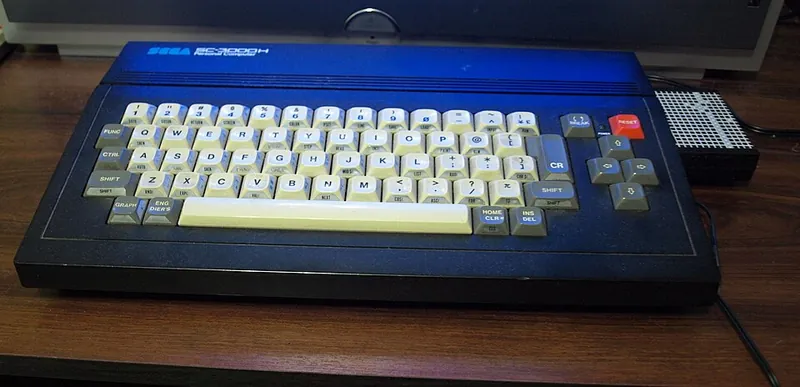

Sega SC-3000H
1983 · personal computer
Specifications
| Manufacturer | Sega |
|---|---|
| Release year | 1983 |
| Type | PERSONAL COMPUTER |
| CPU | Z80A - 3.58 Mhz |
| Memory (RAM) | 2KB + 16KB VRAM |
| Configurations | It can't be used without a ROM Cartridge. Some sources says that they don't have RAM installed and other sources says that they has 2KB, others 18KB,.... Finally, I find a schematich diagram, and the RAM installed on the motherboard are 2KB. The total RAM amount depend of the BASIC cartridge used. In the list of Sega released cartridges appears 5 BASIC cartridges, although I only have find information about three BASIC cartridge: BASIC Level II: 32 Kb of ROM with the Sega BASIC and 1KB RAM (only left 512bytes free for the user) BASIC Level IIB: without info. BASIC Level IIIA: 32KB of ROM with the Sega BASIC and 16KB of RAM. BASIC Level IIIB: 32KB of ROM with the Sega BASIC and 32KB of RAM. BASIC SK-III: without info. It appears Also exist a add-on which adds a 3" floppy disk drive, 64KB of RAM, 8KB of ROM (with the DOS), a serial RS-232 port, and a parallel Centronics port: the Sega SF-7000 |
| Currency original price | 33800 YEN |
| Graphics | 256x192 @ 15 colors + 1 color coloration ( 210 mixing colors) |
| Operating System | Sega BASIC |
| Others port | Cartridge port (44 PIN), RF, Audio/Composite video, 2 joystick ports (9 pin D-type), cassette |
| Parallel port | Printer interface (female 7-pin DIN) |
| Sound | 3 sound channels with 4 octaves + 1 noise channel (TI SN-76489 PSG) |
| Storage memory | Tape |
| Text (Cols x Rows) | 40 x 25 |
About the Sega SC-3000H
This is the same computer of the Sega SC-3000 but with a mechanical keyboard. It was released some months later than the SC-3000. The Sega SC-3000H was sell in Japan in two colors: black and white. In the rest of the world it was released only in black color. This computer was also sell under the brands: GrandStand in New Zealand. John Sands in Australia. Yeno in France.
